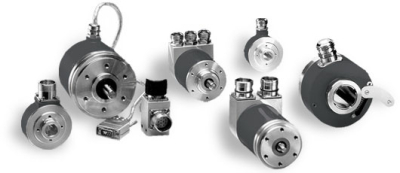

MEYLE Absolute Encoder

Absolute encoders have a disk with a digital coding on concentric tracks. This code is read by a Opto-Asic. A unique bit pattern is assigned to each position. The advantage is, that after power failure true position verification is available as soon as power is up again, even if the shaft was moved during the dead state.


No reference drives after starting-up are necessary as with incremental systems. Safety is increased and the time taken for reference drives is saved.

• Absolute magnetic single- and multiturn encoders with SSI, CANopen, RS485, SAEJ1959 outputs  (Profibus on request)
• Shaft and hollow shaft versions with 36 mm and 58 mm diameter
• Resistant diecast housing and protection up to IP 67
• Stainless steel shaft
• Single-/multiturn (14 bit/40 bit)
• 2-colour diagnostics LED
• High shaft load up to 220 N radial
• Compact and heavy-duty industrial types
• Shaft Ø 6 or 10 mm
• Blind shaft Ø 6, 8, 10, 12, 14 mm
• Interface: SSI CANopen SAE J 1939 RS485
• no battery, no gear (MT)

• SSI-Interface
• 25 Bits (13 Bit/Rev. x 12 Bits Rev.)
• 10-30 Volts DC RS422 or RS485

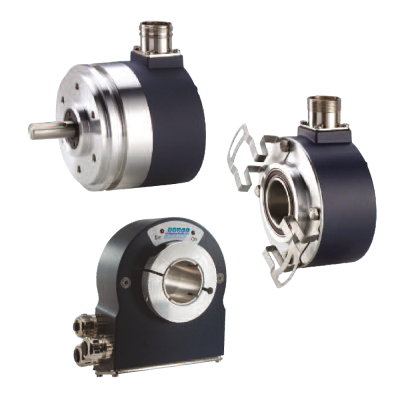

• Hollow-Shafts 10-50,8 mm
• Supply Voltage 10-30 V DC
• Current Cosumption 60 mA (max)
• Codes Available Gray or Binary
• Logic Level (high) Vcc-0.7 Volt
• Logic Level (low) 0.25 Volt (max)
• Short Circuit Protection 100 %

• Electronic multiturn gear
• Hollow shaft up to Ø 28 mm or shaft Ø 12 mm
• Shock resistant up to 250 g
• Only 50 mm clearance needed
• Easy mounting of the hollow shaft version. The encoder ist mounted directly on the drive shaft without coupling
• Multiturn up to 8192 (13 bits) resolution, 4096 (12 bits) number of turn
• SSI interface, additional interfaces include RS 485 and OEM specific protocolls
• Protection: IP 65
• optional with incremental track 2048 ppr.
• EX available as explosion proof zone 2 and 22

• Absolut-Encoder with analogue-output-signal
• Uout = 0-10 VDC to correspond to 0-360° mech. angle of rotation AU-version
• Centering seat Ø 50, mounting punch circle Ø 68
• Connector version

Features

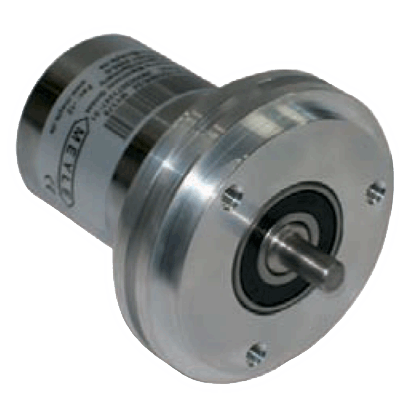

• Housing Ø 37,5 mm shaft (CAxS37) and hollow/blind shaft (CAxH37) absolute encoder
• CAxS37: up to 17 bit single turn an 12 bit single turn and 12 bit multiturn, +100 °C operationg temperature, 6 mm shaft Ø
• CAxH37: up to 19 bit single turn an 12 bit single turn and 12 bit multiturn, +120 °C operationg temperature, 8 mm shaft Ø
• SSI or BISS interface
• Sinewave 1 Vpp
• Bandwidth 500 kHz

• Compact design: 50 mm length for singleturn or multiturn versions
• Startup and operating aids: Diagnostics LED, preset key with optical feedback, status message
• Interfaces: Standard SSI, extended SSI mode, parallel interface or BiSS
• Sine/cosine signals available for dynamic control loops
• Max. 30 Bit

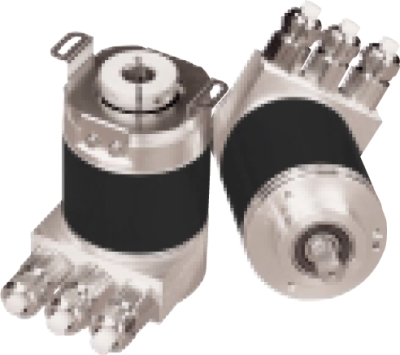

Fieldbus Versions

• Overall length: 63 mm (singleturn), 73 mm (multiturn) including bus cover
• Availability of all common field bus interfaces
• The complete bus-specific electronics is accommodated in the bus cover
• Versions: Profibus DP, DeviceNet, CAN, CANopen and Interbus

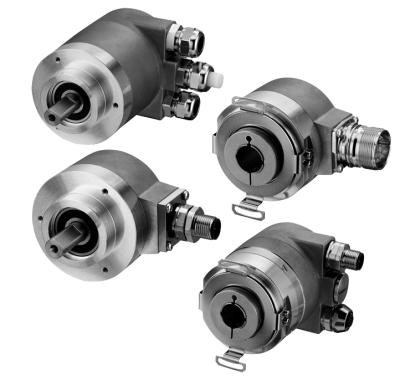

• Absolute single- and multiturn encoders with Bit Parallel, SSI, Profibus, CAN, DeviceNet, Interbus and Ethernet outputs
• Shaft and blind shaft 58 mm diameter versions
• Aluminium Flange and housing
• Stainless steel shaft
• Precision ball bearings with sealing or cover rings
• Code disc made of unbreakable and durable plastic
• Applications: Sensing of Angels, Distances, Tracks, Inclinations, Differences between two or more axes
• Compact and heavy-duty industrial types
• Housing: 58 mm Ø
• Shaft: 6 or 10 mm Ø, blind shaft 15 mm Ø, reduction hubs of 8, 10 and 12 mm Ø
• Max. 65,536 steps per revolution (16 Bit)
• Max 16,384 revolution (14 Bit)
• EMC: EN61000-6-2, EN61000-6-4, CE
• Interface: SSI (RS 422/485), Bit parallel, push pull, Profibus DP, CAN, CANopen, Interbus, Device Net, Ethernet

• Most compact multiturn shaft encoder
• Latest field bus CANopen, CANlift profiles
• Increased resistance against vibrations and installation mistakes avoids machine stops
• Protection up to IP67
• Wide temperature range -40 °C to +80 °C optional -40 °C to +90 °C
• Fast, simple and error free connection
• Absolutely safe operation even in strong magnetic fields via mechanical drive
• Quick and error free start up
• Real time position, speed, working area or acceleration data
• Synchronous position acquisition

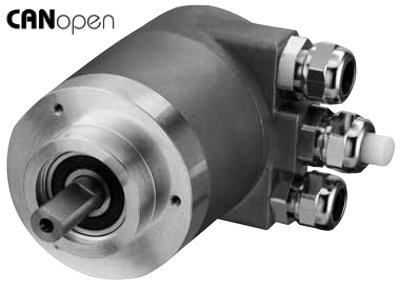

• Absolute single- and multiturn encoders with SSI, Profibus, CANopen and CANlift outputs
• Shaft and hollow shaft versions with 58 mm diameter
• Resistant diecast housing and protection up to IP 67
• Stainless steel shaft
• Applications: sensing of: - Angels - Distances, Tracks - Inclinations - Differences between two or more axes
• Robust double bearing design
• Compact and heavy-duty industrial types
• Shaft Ø 6 or 10 mm
• Blind/hollow shaft Ø 10, 12, 14, 15 mm
• Absolutely safe operation even in strong magnetic fields with optical multiturn gear
• Interface: SSI (RS485) BiSS Profibus DP 2.0 (Profile V1.1, Class 1+2) CANopen/CANlift 2.0B (Profile D5 40683.1)
• New technology absolute encoder
