MEYLE Incremental Encoder

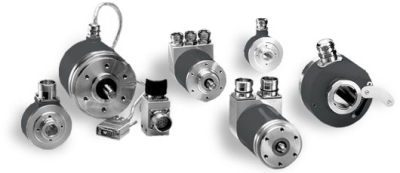

Meyle offers a comprehensive range of incremental, absolute and bus-compatible encoders as solid and hollow shaft versions.  Heavy duty encoders, draw-wire sensors, linear encoders and speed monitors. Encoder speed monitor combinations, redundant encoders, encoders with large hollow and through hollow shafts, robust encoders for conveyor belt systems and steelworks.

For a better overview we have categorized our encoders. Please click on the following link to get to the PDF.

• Incremental encoders with housing diameter 24 to 145 mm
• Incremental encoders with 4 to 72 mm hollow shaft
• Incremental encoders up to 80.000 increments resolution
• Incremental encoders up to IP 68 / IP 69K (Food industry)
• Incremental encoders with sinus output
• Double- and triple mounting of incremental and absolute encoders for different electrically isolated outputs
• Absolute encoders with housing diameter 36 to 200 mm, single- and multiturn absolute encoders with 10 to 30 mm through hollow shaft
• Absolute encoders up to resolution 17 Bit singleturn und 29 Bit multiturn
• Bus encoders for Profibus, CANopen, CANlift, Interbus, DeviceNet, Ethernet, SSI, parallel, BiSS
• Absolute encoders from 33 mm length (Ø 37 mm)
• Heavy duty incremental and absolute encoders for steel, crane and paper industries
• Linear encoders for length measurement with glass scale or long length metal tape up to 30.040 mm
• Incremental and absolute linear encoders
• Angular encoders up to resolution 1.800.000 increments (interpolated)

Features

• small housing diameter
• usable in harsh conditions
• IP 65, optional IP 67
• High shaft load radial 80 N, axial 50 N






Electrical Specifications

• Supply Voltage 4.75-5.5 VDC or 5-30 VDC
• Current Consumption 40 mA (max.)
• Output Circuit Push-Pull: 1-128, 256, 512, 1024 ppr RS 422: 16, 32, 64 ppr
• Impulse Frequency 200 kHz (max.) (HTL ≤ 1024 ppr) 20 kHz (max.) (TTL ≤ 64 ppr)
• Output signals A, A, B, B, 0, 0 Load max. 30 mA / channel E

Features

• Low price at high performance
• IP 64
• Wide temperature range (-20 ... +85 °C)
• Housing is resistant against environmental influences due to chromium plated surface
• Sturdy cable output with multiple clamping
• Temperature compensation
• Broad input voltage range (5 ... 24 V or 8 ... 30 V)
• Highly flexible cable with stands constant flexing from 0 °C ... 70 °C
• Low power consumption despite high scanning rate
• Reverse connection protected and short-circuit proof

Applications

• Pick and place machines
• Handling machines for electronic components
• Quality testing machines
• Medical machines
• Mail opening and mail stuffing machines
• Check weighers
• Labeling machines
• Mole machines (camera control)




Features

• Low price at high performance
• IP 64
• Wide temperature range (-20 ... +85 °C)
• Housing is resistant against environmen-tal influences due to chromium plated surface
• Sturdy cable output with multiple clamping
• Temperature compensation
• Broad input voltage range (5 ... 24 V or 8 ... 30 V)
• Highly flexible cable with stands constant flexing at 0 °C ... 70 °C
• Low power consumption despite high scanning rate
• Reverse connection protected and short-circuit proof

Features

• Up to 10.000 steps in 2500 cpt
• Applications: micro-robotics, printing…

Features

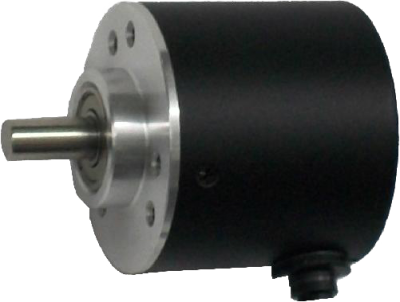

• Miniature Size Ø 38 mm
• IP 62 Protection
• 5 to 26 Volts, RS 422 Compatible
• <100 kHz Maximum Frequency
• Resolutions up to 1024 cpt

Features

• Industry Standard Size Ø 50 mm
• IP 65 Protection, Option IP 67
• 5 to 30 Volts, RS 422 Compatible
• <300 kHz Maximum Frequency
• Resolutions up to 5000 cpt

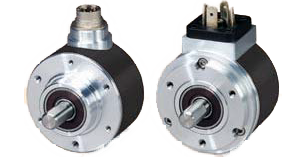

Features

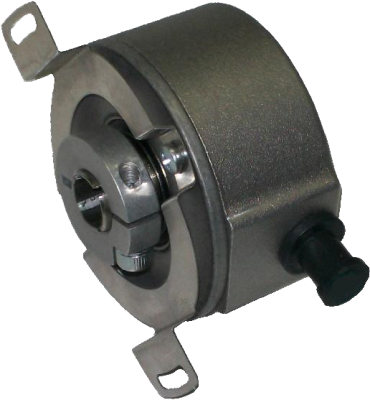

• Shaft (FINS) and hollow shaft (FINH) encoder with the same modular concept
• Shaft diameters Ø 6 and Ø 10 mm for shafted encoders
• Hollow shaft Ø 14 mm, aluminium reduction hubs of Ø 6, Ø 10 and Ø 12 mm
• Robustness, excellent shock and vibrationresistance
• Easily achievable high degree of protection IP 67 with special sealing ?ange for shafted versions
• High resolutions available up to 80000 cpt in 3 channels with complements
• Available output signals: square wave, square wave programmable and sine wave
• Simple programmable resolution through dipswitch, no software, no hardware required
• Universal electronic circuits from 4.75 Vdc to 30 VDC
• High operating temperature performance: -30 °C up to 100 °C (encoder temperature)
• High frequency response performance of the output signals: 300 kHz (push-pull & RS422)
• Glass disks in standard, available with unbreakable disks in Polyfas (Composite Mylar-Mica) in option for resolutions <2500 cpt and temperature <80 °C

Features

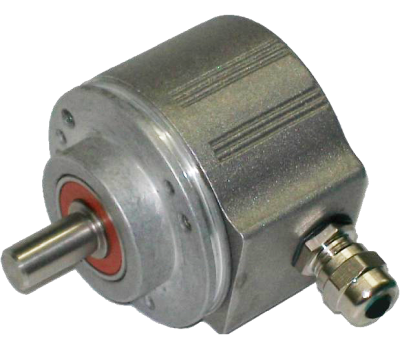

• Industry Standard Size Ø 58 mm
• IP 65 Protection
• 4.75 to 30 Volts, RS 422 Compatible
• 300 kHz Maximum Frequency
• Resolutions up to 2499 cpt
• Economical version

Features

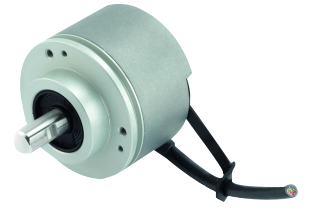

• Industry Standard Size Ø 58 mm
• IP 65 Protection, Option IP67
• 5 to 30 Volts, RS 422 Compatible
• <300 kHz Maximum Frequency
• Resolutions up to 25000 cpt

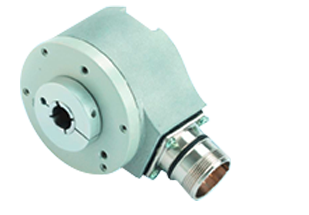

• Programmable incremental encoder from 1 to 65.536 pulses
• Programming software via USB cable, without an additional programming box
• Multi-voltage 5--30VDC,automatic power voltage recognition
• Shaft Ø 6 or 10 mm - Hollow shaft Ø 10, 12, 14 and 15 mm
• Protection class IP65 according to DIN EN 60529
• Connection by cable (any cable lenght available) or industrial connector M12 or M23

Features

• Through shaft with up to diameter 42 mm
• Short overall length with an outside diameter of only 76 mm
• Easy installation by means of clamping ring
• Operating temperature up to 100 °C

Application e.g.:

• motors
• printing machines
• lifts

Features

• Industry Standard Size Ø 80 mm
• IP 65 Protection, Option IP67
• 5 to 30 Volts, RS 422 Compatible
• <300 kHz Maximum Frequency
• Resolutions up to 8192 ct

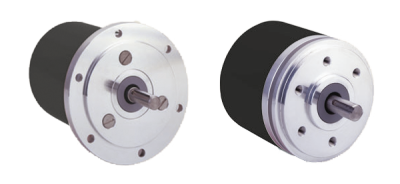

Features

• Heavy duty standard encoder
• Ø 90 mm synchro flange
• or Ø 115 mm tachoflange

Applications

steel and paper mills, food industry, windmills

Features

• Industry Standard Size Ø 90 mm
• IP 54 Protection, Option IP64
• 5 to 26 Volts, RS 422 Compatible
• <100 kHz Maximum Frequency
• Resolutions up to 6000 cpt

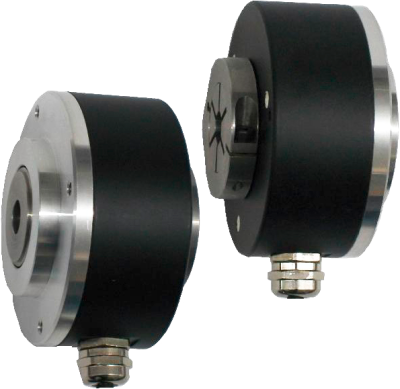

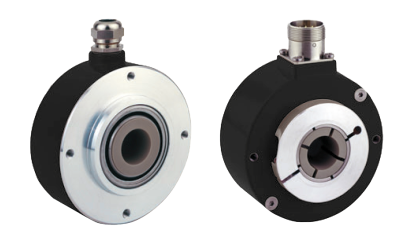

Features

• Heavy duty hollow
• shaft encoder
• Adaptation of the diameter by reduction hubs in aluminium or in composite RDP (thermal and electrical insulation)
• Possibility of double or triple mounting with incremental, absolute or tachoencoders

Features

• Industry Standard Size Ø 90 mm
• IP 62 Protection
• 5 to 26 Volts, RS 422 Compatible
• <100 kHz Maximum Frequency
• Resolutions up to 4096 cpt

• Resolution up to 5.000 pulses per turn

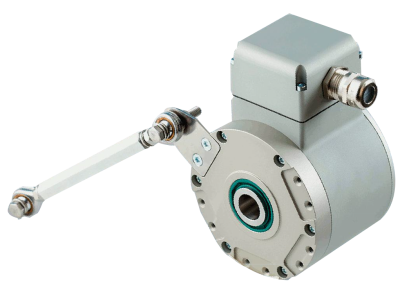

• External diameter 100 mm
• Dual Output available
• Shaft Ø 11 mm - Blind hollow shaft from Ø 12 to 16 mm
• Integrated bearing insulation of up to 2,5 kV
• Protection class IP66 according to DIN EN 60529
• Connection by terminal box with plug-in spring terminal connectors, rotatable through 180°
• Dual output available

Features

• Economic encoder with mechanical carrying of loading capacity
• Protection to IP67, IP65 on shaft

Application fields
Machines used in the wood and plastic industries, Food processing machines, Motion Control, Machines for shoe manufacture and the Leather industry.

Features

• Extremely rugged and economical encoder with short measurements
• Easy mounting
• Meets protection class IP68

Application fields
Machines for labelling inspection and filling, industrial elevators also for outdoor use, belt scale in a quarry, automatic car wash machines and crane systems.

Features

• Rugged industrial standard encoder
• Meets to protection class IP67, with shaft sealed to IP65
• High noise immunity
• High shaft load radial 400N, axial 400N

Application fields
Electric motors, machine tools, weighscales, conveyors, printing machines, drives, textile machines, production lines, injection-moulding machines, test machines, elevators/lifts, doors and gates.

Features

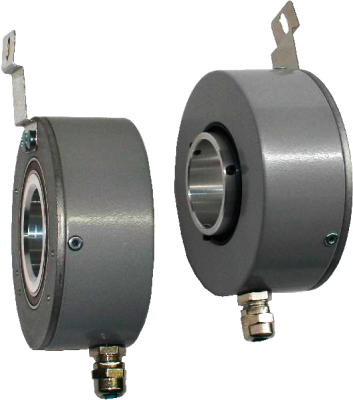

• Heavy duty hollow shaft encoder
• Hollow shaft 40-65 mm
• 25000 PPR Maximum
• 4.75 to 30 Volts, RS 422 Compatible
• 300 kHz Maximum Frequency
• Possibility of double or triple mounting with incremental, absolute or tacho encoders
• Short circuit protection

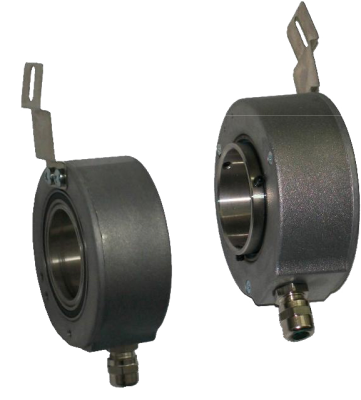

Features

• Rugged and extremely thin hollow shaft encoder for extension on power motors
• Hollow shaft Ø max. 45 mm
• Easy mounting
• Meets protection class IP 54

Applications

Power motors and three phase current motors with frequency transformation, system construction, crane systems

Features

• Industry Standard Size Ø 100 mm
• IP 65 Protection, Option IP67
• 5 to 30 Volts, RS 422 Compatible
• <300 kHz Maximum Frequency
• Resolutions up to 10000 cpt

Features

• Only 43 mm clearance needed
• Hollow shaft diameter up to 42 mm
• RS 422, push-pull or SIN/COS outputs
• Very easy mounted directly on the drive shaft without couplings. This saves up to 30 % cost and 60 % clearance compared to shaft visions.
• Temperature and ageing compensation
• Short-circuit proof outputs
• RS 422, push-pull or sine wave output
• Resolution up to 5000 ppr
• High scanning rate

Features

• Hollow shaft encoder for direct istallation on large electric motors
• Maximum mechanical and electrical safety
• Highly interference-resistant when used with frequency converters
• Meets protection class IP 54
• Hollow shaft Ø max. 72 mm
