MEYLE Linear Encoder
Linear encoders measure the position of linear axis and are suitable for positioning accuracy on machines. The scales are protected against chip, dust and cooling water and are designed for use on various machine tools and installations such as
- Lathes
- Milling machines
- Drilling and boring machines
- machining centres
- grinding machines. EDM machines
- Bending presses
- Welding machines
- other positioning devices etc.
We offer a wide rage of linear
encoders requiring different types of feedback, signals for manufacturer's and end-user's of machine tools.

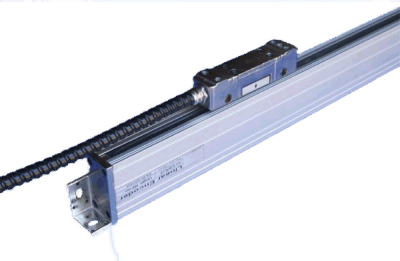

- Incremental glass linear encoders
- NC Incremental glass linear encoders
- Long lengths linear metal tape encoder
- Absolute Linear encoders
Linear encoder overview catalogue

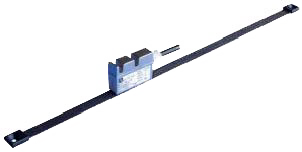

MYLES 1 – Magnetic Linear Encoder System
Magnetic measuring scale and free floating unguided sensor head
- High resolution up to 0,001 mm resolution
- Sturdy metal case
- Best technology in small dimensions
- Shielded metal enclosure
- Easy mounting by gluing
- Contact-less and vear free system
- High resistance to vibrations to knocks
- Protection class IP67
- Resistant to humidity
- High accuracy
- Reliability reading transducer
- Measuring lengths of up to 100 m
- Connection cable up to 50 m
- Signal processing as standard with encoders
MEYLES1 data sheet
MYLES 2 – Magnetic Linear Encoder System
Magnetic measuring scale in flat profile and unguided sensor head
- High resolution up to 0.001 mm
- Tape in flat and rugged aluminum profile
- Stainless steel cover protect
- Best technology in small dimensions
- Shielded metal enclosure
- Easy mounting
- Contact-less and vear free system
- High resistance to vibrations to knocks
- Protection class IP67
- Resistant to humidity
- High accuracy
- Reliability reading transducer
- Measuring lengths of up to 100 m
- Connection cable up to 20 m
MEYLES2 data sheet
MYLES 3 – Magnetic Linear Encoder System
Magnetic measuring scale and free floating unguided sensor head
- High resolution up to 0,001 mm resolution
- Sturdy metal case
- Best technology in small dimensions
- Shielded metal enclosure
- Easy mounting by gluing
- Contact-less and vear free system
- High resistance to vibrations to knocks
- Protection class IP67
- Resistant to humidity
- High accuracy
- Reliability reading transducer
- Measuring lengths of up to 100 m
- Connection cable up to 50 m
- Signal processing as standard with encoders
MEYLES3 data sheet
